4kW CO2 Laser cutting machine [LMRV]
The high-power laser cutting is more wieldy now.
Full-model change!
The model of mounting 4kW laser oscillator appears! The LMR series is the one pursuing cost performance of laser cutting of “Medium to thick mild steel plates” Highness in cut quality and excellence in economy have collected high reputation in many sites. The LMRV series is introduced in the market in response to needs and support at site as such. While holding down the cost, integration of the 4kW oscillator is achieved. Easiness in use with high quality, high speed, and high efficiency of one-rank upper grade and low cost make laser cutting evolutionally advance.
*Note: The model LMR has been developed under the concept of starting revolution to make laser the main stream.
The combination of the new oscillator using SANLASER GAS (TF2) and the GOS(PAT/PEND) function improved the possible cutting thickness to 22 mm. Also, machine motion speed other than cutting has been improved by employing the ping-pong functon that performs torch lifting/lowering simultaneously with torch travel in the X- and Y-directions. Piercing time period has been reduced as a whole owing to unique technologies on machine control and gas control.
Features
-Space saving up to 37% (vs. TANAKA existing model).
Succeeded in miniaturization of the machine body through unique design.
-Making existing track rail usable.
The machine can be installed with the standard track rail (3,500, 4,000, 4,500, 5,000, 5,500 mm). LMRV25-LMRV35 can use 37kg/m rail.
-You can handle a big size material.
Seven types of effective cutting width from 2,700 to 5,600 mm are available, which provides no limitation to the effective cutting length and enables continuous un-attended operation of more varieties of materials.
-You can make use of un-attended operation.
The LMRV-TF4000 is equipped with the motorized lens focus adjusting device (LRCII) as a standard accessory, which enables focus position change interlocked with NC controller. Further, the GOS function for automatic adjustment of mixture ratio of shield gas is provided as a standard accessory, which enables continuous cutting.

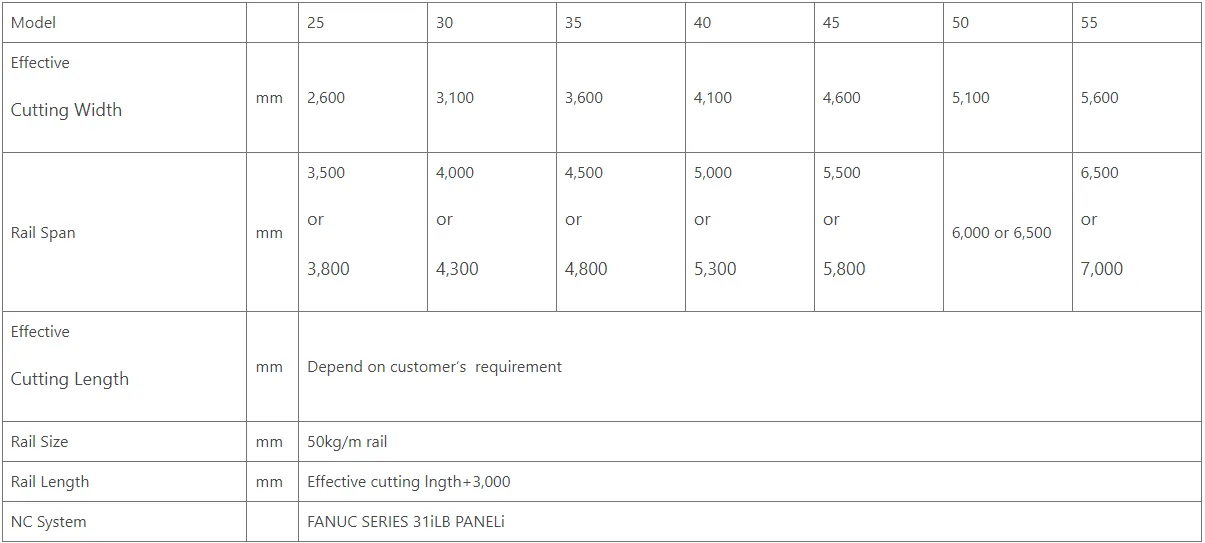

| Model | LMRV25 | LMRV30 | LMRV35 | LMRV40 | LMRV45 | LMRV50 | LMRV55 |
| Effective cutting width (mm) | 2,600 | 3,100 | 3,600 | 4,100 | 4,600 | 5,100 | 5,600 |
| Rail span (mm) | 3,500 or 3,800 | 4,000 or 4,300 | 4,500 or 4,800 | 5,000 or 5,300 | 5,500 or 5,800 | 6,000 or 6,500 | 6,500 or 7,000 |
| Rail length (mm) | Extendable by 1,200 mm | ||||||
| Rail size | 50kg/m rail (LMRV25～LMRV35 can use 37kg/m rail.) | ||||||
| Effective cutting length (mm) | Effective cutting length + 3,000 | ||||||
| Mounting laser oscillator | TF4000 CO2 gas laser oscillator (Rated output: 4kW) | ||||||
| NC system | FANUC Series 31i-LB | ||||||
| Z-axis stroke (mm) | 200 | ||||||
| Machine overall length (mm) | 3,130 | ||||||
| Machine overall width (mm) | Rail span + 1,030 | ||||||
| Machine overall height (mm) | 2,076 | ||||||
Cutting specification (possible plate thickness)
| Mild steel black skin material*1 | 22mm |
| Stainless steel material*2 | 10mm(12mm)*3 |
*1 Material:SS400(TANAKA specification). Shape: Square 70mm×70mm(with corner radius 5mm)
*2 Material:SUS304. Shape: Square 70mm×70mm(with corner radius 5mm)
*3 Figures in parenthesis show cutting specification in separation cutting. Sometimes dross adheres. Check it with a sample.
Speed specification(mm/min)
| Processing feed speed | 1～236 ipm |
| Rapid feed speed | 944 ipm |
| Manual rapid feed speed | 472 ipm |
| Cutting head lifting speed | 787 ipm |
| Cutting head approach speed | 590 ipm |
| Home return speed | 944 ipm |
