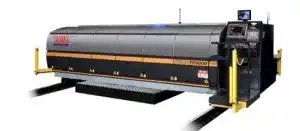

*Tanaka Fiber Cutting Laser (FMRII Series)
FMRⅡ series will significantly reduce operation costs. Power consumption is decreased, and there are no consumables of optical mirrors and laser gas which are necessary for CO2 laser cutting machine. Stabilized fiber laser cutting of TANAKA technology reduces piercing time, and improves fine processing technology. FMR series provides solutions of costs and cutting quality.
l Excellent cutting surface quality FEATURES
Renewed TANAKA original cutting torch and TANAKA fiber laser technology
improve cutting surface quality such as flatness, perpendicularity and cut
surface roughness.
l High productivity
Redesigned machine body and new cutting torch achieve higher cutting feed rate than previous models. In addition, improved machine sequence and faster paid feed provide high productivity.
l Easy Operation
A new operation screens provide user friendly interface. It is easy to see and the machine.
A new shape drawing screen
l Safety first machine
New machine design enhances fiber laser beam protections. A set of torch cover, machine cover and TANAKA’s cutting tables specialized in fiber laser protects from laser beam exposure.

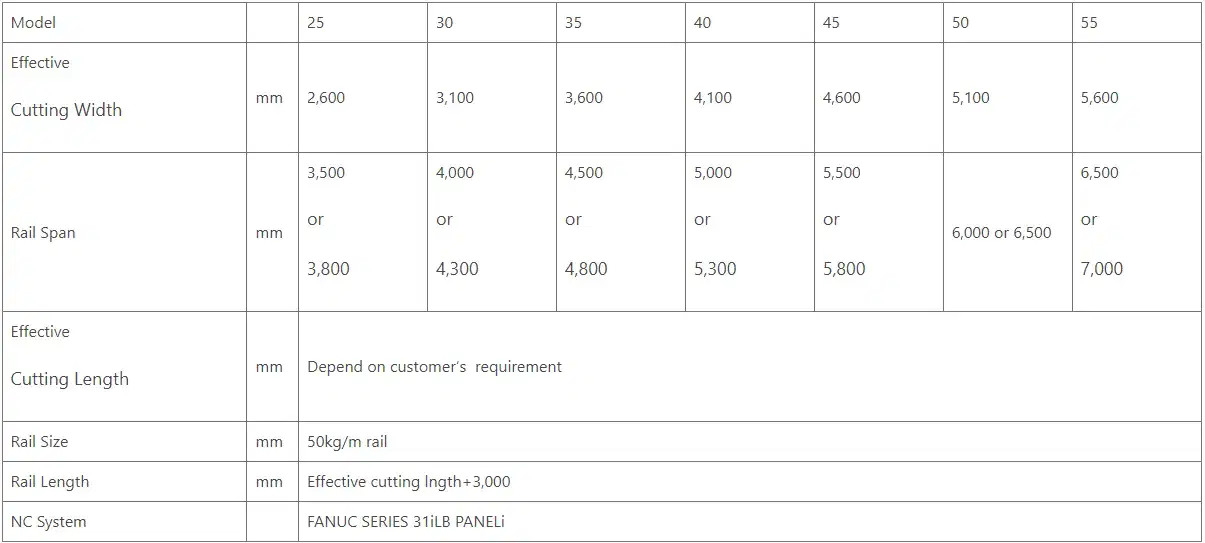

MACHINE INFORMATION
| Model | 25 | 30 | 35 | 40 | 45 | 50 | 55 | |
| Effective Cutting Width | mm | 2,600 | 3,100 | 3,600 | 4,100 | 4,600 | 5,100 | 5,600 |
| Rail Span | mm | 3,500 or 3,800 | 4,000 or 4,300 | 4,500 or 4,800 | 5,000 or 5,300 | 5,500 or 5,800 | 6,000 or 6,500 | 6,500 or 7,000 |
| Effective Cutting Length | mm | Depend on customer’s requirement | ||||||
| Rail Size | mm | 50kg/m rail | ||||||
| Rail Length | mm | Effective cutting lngth+3,000 | ||||||
| NC System | FANUC SERIES 31iLB PANELi | |||||||

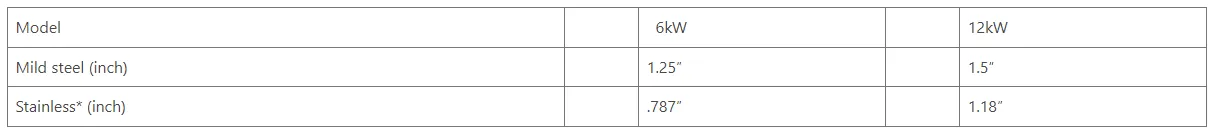

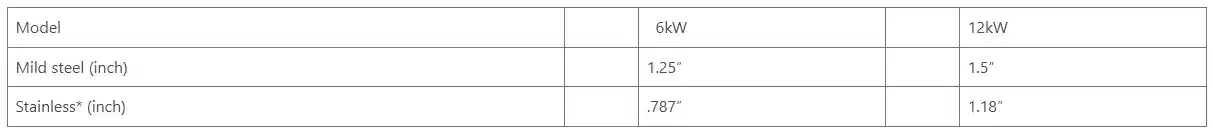

CUTTING SPECIFICATIONS
| Model | 6kW | 12kW | ||
| Mild steel (inch) | 1.25″ | 1.5″ | ||
| Stainless* (inch) | .787″ | 1.18″ |
*assist gas pressure is under 1 Mpa

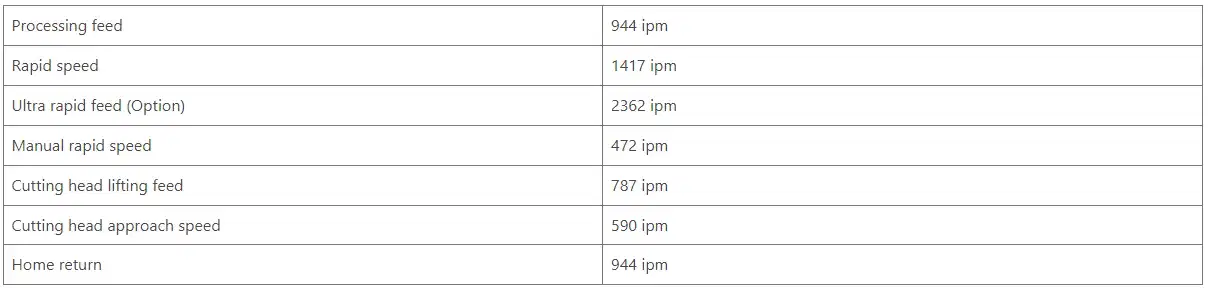

SPEED SPECIFICATIONS
| Processing feed | 944 ipm |
| Rapid speed | 1417 ipm |
| Ultra rapid feed (Option) | 2362 ipm |
| Manual rapid speed | 472 ipm |
| Cutting head lifting feed | 787 ipm |
| Cutting head approach speed | 590 ipm |
| Home return | 944 ipm |
