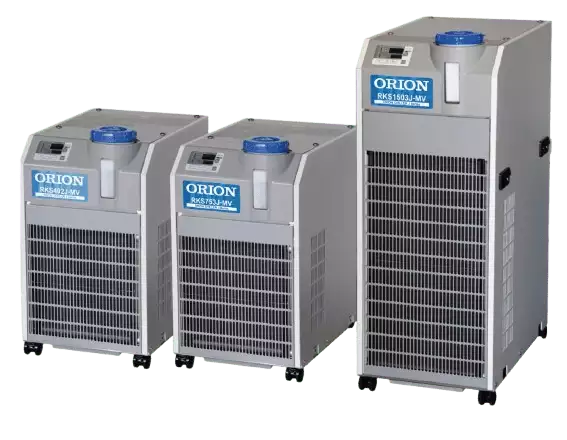

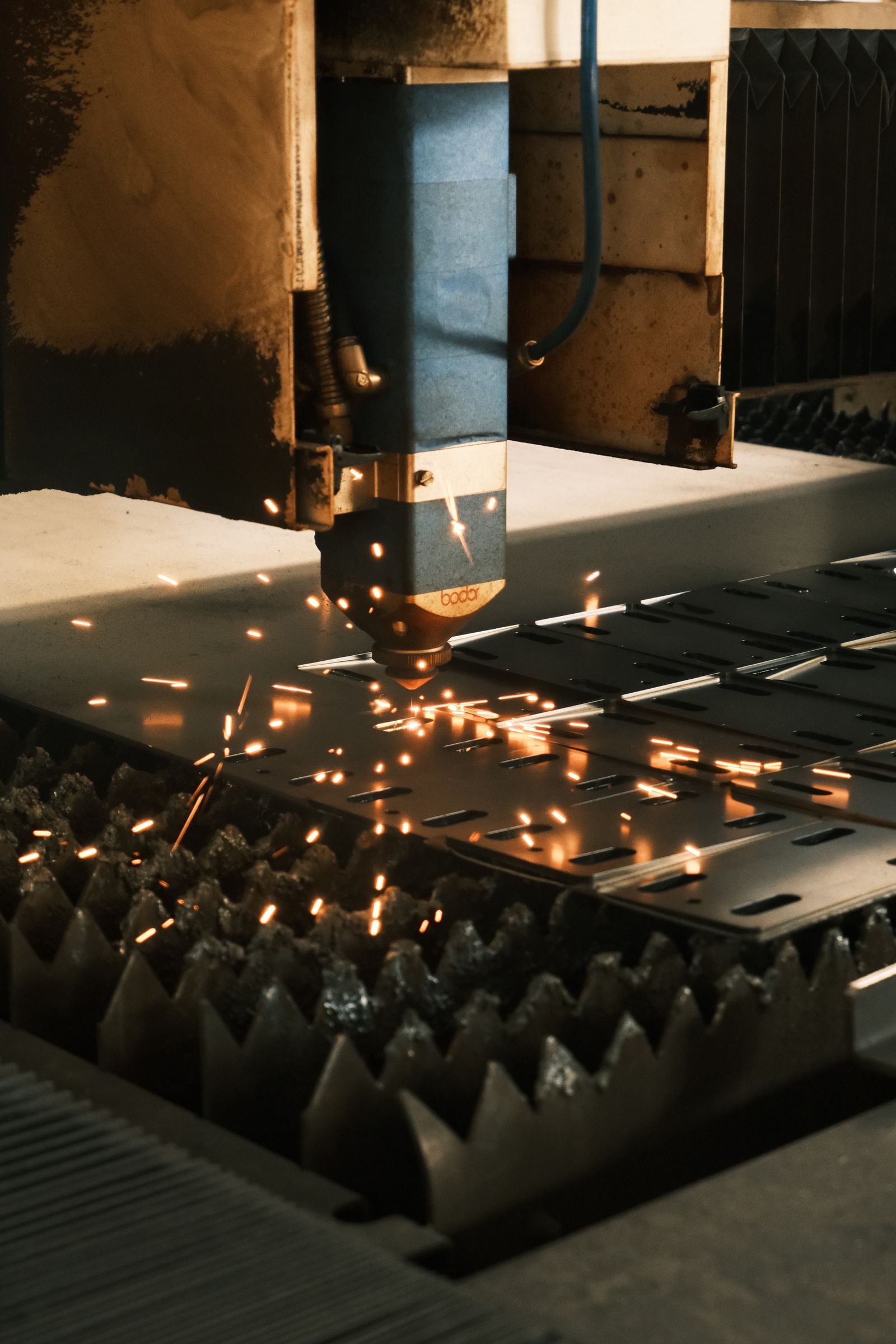

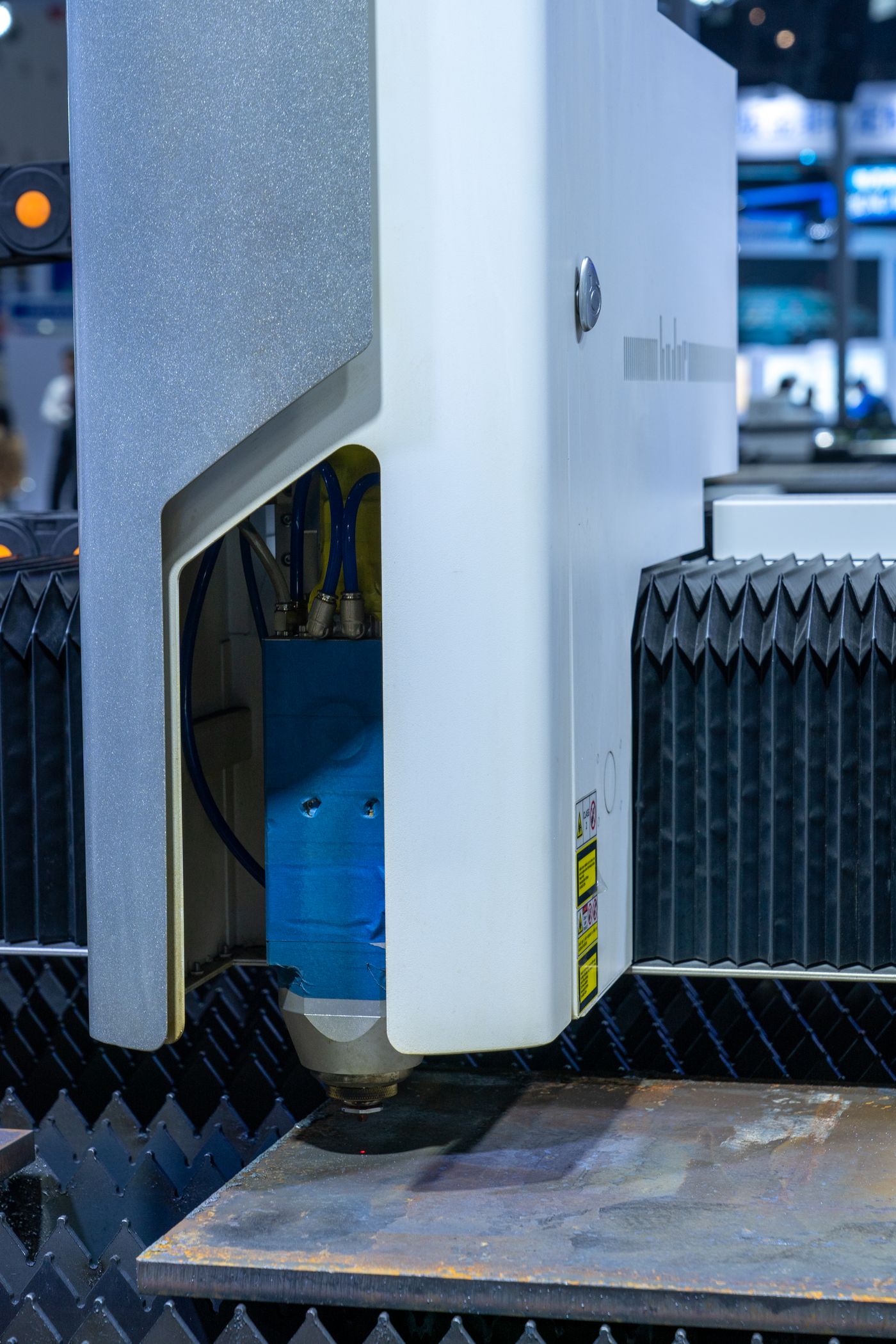

Fiber laser installation requirements come down to seven things: adequate and clean electrical service, dry compressed air, an assist gas supply, heat rejection through a properly sized chiller, a flat and solid floor, enough clearance for the machine plus material handling, and fume extraction with the right safety setup. Sort those out before the truck arrives and a machine goes from crate to first cut in a matter of days. Miss one and the machine sits. Most delayed installs we see are not machine problems. They are facility problems that nobody checked until the rigger was already on site. Below is what to verify, in the order it matters, with the questions to put to your electrician and your dealer well before the ship date. Table of Contents The Short Answer on What a Fiber Laser Needs A fiber laser is not a plug-in tool. It is a system that pulls significant three phase power, needs compressed air at a specified pressure and dryness, consumes assist gas, rejects a large amount of heat into a chiller, and has to sit dead flat and stay that way. It also needs room around it for sheets going in and parts coming out, and it produces fume that has to be captured. Every machine model publishes its own numbers for all of this. Do not work from a rule of thumb you read somewhere, and do not assume a new model matches the machine it replaced. Get the specification sheet for the exact machine and configuration you are buying, hand it to your electrician and your air and gas suppliers, and let them tell you what has to change. That is the whole job, and it is straightforward when it happens twelve weeks out instead of the week of delivery. What follows is the checklist to work through, and what tends to go wrong in each area. Requirement 1: Electrical Service and Power Quality This is the most common reason a fiber laser installation slips. A modern fiber laser plus its chiller and dust collector represents a serious load, and a lot of shops discover their existing service does not have the headroom once everything runs at once. Four things to confirm before ordering anything. First, the incoming service capacity, meaning whether there is enough amperage available at your panel with everything else in the shop running, not just on paper. Second, the voltage and phase the machine expects, since a mismatch means a transformer, and a transformer means lead time and floor space. Third, the disconnect and breaker sizing and where the disconnect has to be located relative to the machine. Fourth, grounding, which fiber lasers are particular about because the drives and the controller are sensitive to a poor ground. Power quality matters as much as capacity. Voltage sag when a large compressor kicks on, harmonic distortion from other drives in the building, and phase imbalance all cause faults that look like machine problems and are not. If your shop has a history of nuisance faults on other CNC equipment, get a power quality survey done before the laser lands rather than chasing it afterward. Work from the National Electrical Code and let a licensed electrician size the installation. One practical note: run the conduit and set the disconnect before the machine arrives. Riggers can place a machine in a morning. Waiting on an electrician afterward costs days. Requirement 2: Clean, Dry Compressed Air Compressed air runs the cutting head, the nozzle changer, the pneumatics, and on many machines it doubles as an assist gas for thinner material. It has to arrive at the pressure the machine specifies and it has to be dry. Dryness is where shops get hurt. Ordinary shop air carries water and compressor oil. Send that into a cutting head and you contaminate the protective window, which then absorbs energy, overheats, and fails, sometimes taking more expensive optics with it. The fix is a refrigerated or desiccant dryer sized for your actual air demand, plus coalescing filtration, plus a drain that works. Check the machine specification for the required dew point and filtration level and match it exactly. Volume is the second issue. A compressor that keeps up with hand tools may not keep up with a laser running air assist continuously. Size for the machine demand plus everything else in the shop running at the same time, and give it a receiver tank so short peaks do not drag the pressure down. Air quality problems show up as consumable cost first. If you are burning through protective windows and nozzles faster than expected, air is the first place to look, ahead of nozzle condition or cutting parameters. Requirement 3: Assist Gas Supply and Storage Assist gas is a facility decision, not just a consumable line item, because how you supply it changes what has to be built before the machine runs. Nitrogen for oxide free edges on stainless and aluminum, oxygen for thicker carbon steel, and air for lighter gauge each have different supply implications. High pressure cylinders are the simplest starting point and the most expensive way to run volume. Bulk liquid means a tank outside, a pad, a vaporizer, and a supplier agreement. On site nitrogen generation means a generator, more compressed air demand, and attention to purity, since nitrogen purity directly affects edge quality on stainless. Whichever route you choose, the piping run to the machine has to be sized for the flow the cutting head demands at pressure. Undersized line is a classic mistake: pressure reads fine at the manifold with the machine idle, then drops the moment cutting starts, and the edge quality goes with it. Regulators, manifolds, and cylinder or tank location all need to be settled before the install date, and outdoor bulk storage frequently involves a permit and a lead time measured in weeks. If you are still deciding, our breakdown of assist gas selection covers the tradeoffs between nitrogen, oxygen, and air by material and thickness.
